NeoGen X-DM Digital Microcirculation Microscope

NeoGen X-DM Digital Microcirculation Microscope

CAPTURE HIGH-RESOLUTION IMAGES OF THE NAILFOLD CAPILLARIES WITH A SIMPLE CLICK OF A BUTTON!

Reasons to choose the
NeoGen X-DM Digital Microcirculation Microscope:

  • Convenient
  • Compact
  • Wireless (NeoGen X-DM 5MP)
  • High-resolution
  • Cross-platform compatibility
  • Intensity-adjustable LEDs

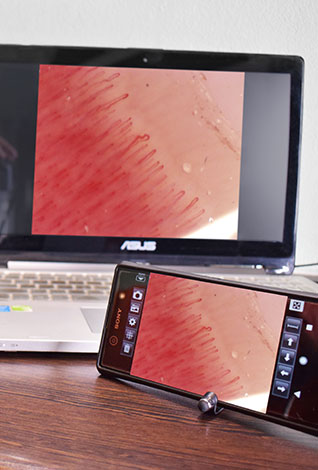

Iris camera

The NeoGen X-DM range of microscopes are next-generation digital microcirculation microscopes that are compact, portable, and high-resolution.

These innovative microcirculation microscopes are easy to operate and portable. They feature intensity-adjustable LEDs that provides the user with the ideal illumination of the nailfold capillaries.

NeoGen X-DM 2MP Digital Microcirculation Microscope

Microcirculation Analysis (distal nailfold capillary analysis) is a non-invasive technique where the capillaries in the nailfolds of the fingers are analysed with a specialised microscope. It is gaining popularity with naturopaths, complementary health practitioners, and health coaches around the world due to its ability to provide insights into the underlying state of health of the cardiovascular system and the body as a whole.

One of the reasons why exercise and increasing your heart rate on a regular basis is extremely beneficial is because it increases the microcirculation. While circulation refers to blood flow to and from vital organs, microcirculation refers to blood flow in the smallest blood vessels in the body – the capillaries. These blood vessels are usually embedded in the organs (including the skin) and interact directly with the cells in the tissues.

Poor microcirculation is one of the single biggest contributing factors to nearly all health conditions, including diabetes, hypertension, kidney disease, Alzheimer’s, early aging and many others. It is estimated that 80% of the population over the age of 40 may have moderately to extremely serious microcirculation problems and almost every non-injury related pain can be traced to a compromised microcirculation issue.

Microcirculation analysis is valuable in the assessment and early detection of many conditions, including:

  • Cardiovascular health
  • Thrombosis (blood clot) risk
  • Rheumatoid conditions
  • Blood pressure
  • Systemic sclerosis
  • Scleroderma
  • Other connective tissue conditions
  • Raynaud’s phenomenon
  • and many more

NeoGen X-DM 5MP

NeoGen X-DM 5MP Digital Microcirculation Microscope
NeoGen X-DM 5MP Digital Microcirculation Microscope capillaries

This microscope features a 5MP resolution and a magnification of up to 200X. It is compatible with all operating systems and offers both USB and WIFI connectivity. The integrated adjustable polariser helps to improve focus on the capillaries and to reduce reflected light. This system includes a specialised microcirculation software package that allows the user to capture and save patient information.

NeoGen X-DM 2MP

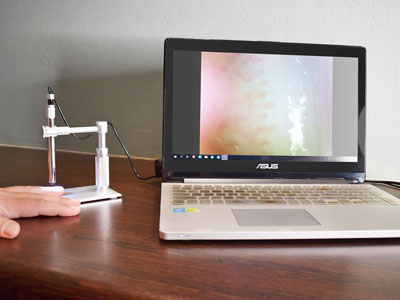

NeoGen X-DM 2MP Digital Microcirculation Microscope

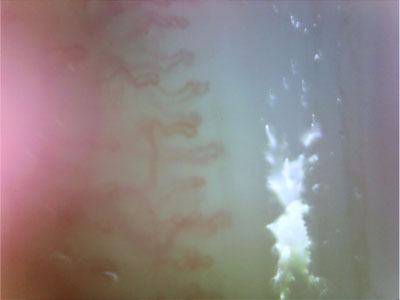

NeoGen X-DM 2MP Digital Microcirculation Microscope capillaries

This microscope features a 2MP resolution and magnification of up to 300X. It is compatible with all operating systems via USB.

NeoGen NeoGen X-DM 5MP and X-DM 2MP specifications and comparison

NeoGen X-DM 5MP

NeoGen X-DM Digital Microcirculation Microscope

Magnification: 200X

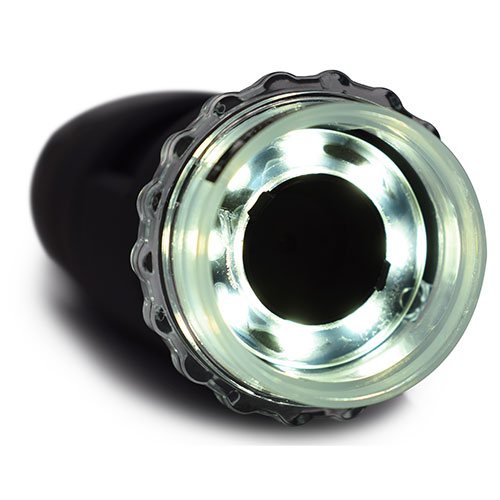

Light Source: 8 adjustable white LEDs

Windows, OS X, iOS, Android (Wi-Fi or USB)

Resolution (USB): 5MP

Resolution (WiFi): 1.3MP

Frame Rate (WiFi & USB): 15fps

WiFi wireless transmission distance: Up to 5m

Power Source: DC5V/1A

Li-ion battery continuous working time: Approx. 2 hours

Li-ion battery full charging time: Approx. 2 hours

NeoGen X-DM 2MP

NeoGen X-DM 2MP Digital Microcirculation Microscope

Magnification: 300X

Light Source: 8 adjustable white LEDs

Windows, OS X, iOS, Android (USB only)

Resolution (USB): 2MP

Frame Rate (WiFi & USB): 5fps

WiFi wireless transmission distance: N/A

Power Source: DC5V (via USB)

Li-ion battery continuous working time: N/A

Li-ion battery full charging time: N/A
